Incontinence Stimulation Probe (Electrodes)

PROBE01

The Incontinence Stimulation Probe (Electrode) are intended to provide electromyography feedback from pelvic musculature or electrical stimulation to pelvic musculature for the purpose of rehabilitation of week pelvic floor muscles and restoration of neuromuscular control during the treatment of urinary incontinence.

PROBE02A

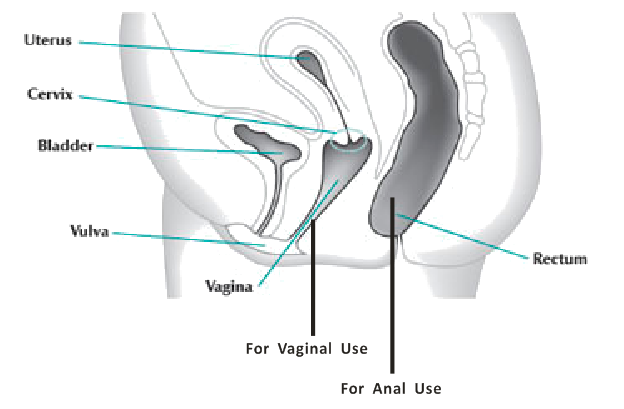

Incontinence Stimulation Electrode Position

Electrode orientation:

Model FUJI-01/02/11/12/14/15 of subject device provide the shell type of orientation,

Model FUJI-03/04/05/06/07/08/09/10/13 of subject device provide circular type of orientation.

PROBE03
LEAD WIRE CONNECTION

The Fuji Dynamics Incontinence Stimulation Electrode models Fuji-01/02/03/04/05/06/07/08/09/10/11/12/13/14/15 are the light weight cylinder consisting of two or three independent conductive rings or plates that are paired and isolated, physically and electrically. The cylinder is shaped with a waist and handle for comfort positioning in vaginal canal for incontinent treatment and easy in removing after treatment. It is watertight to allow for washing with soap and water between uses.


 (A) Vaginal Probe Electrodes

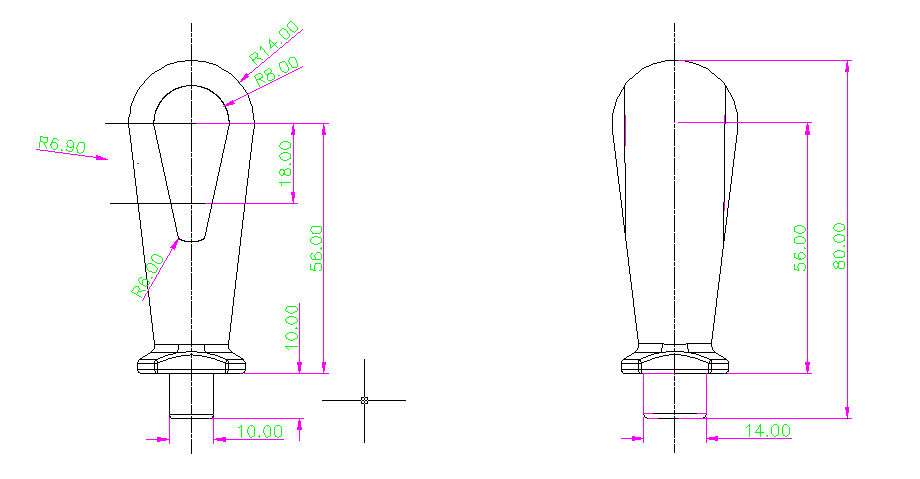

(1) Model: FUJI-01
     Material: SUS & ABS
     Diameter: Dia.28mm x 80mm (Length)

PROBEFUJI01

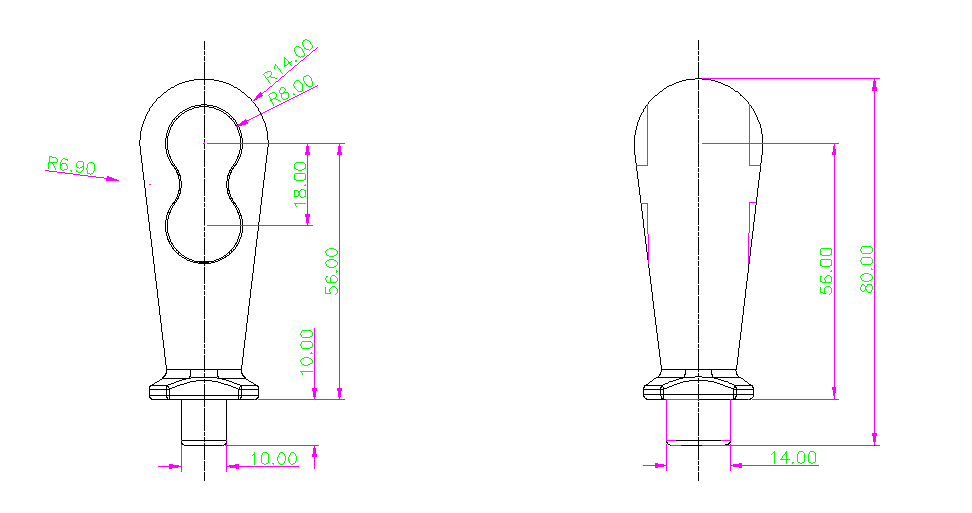

(2) Model: FUJI-02
     Material: SUS & ABS
     Diameter: Dia.28mm x 80mm (Length)

PROBEFUJI02

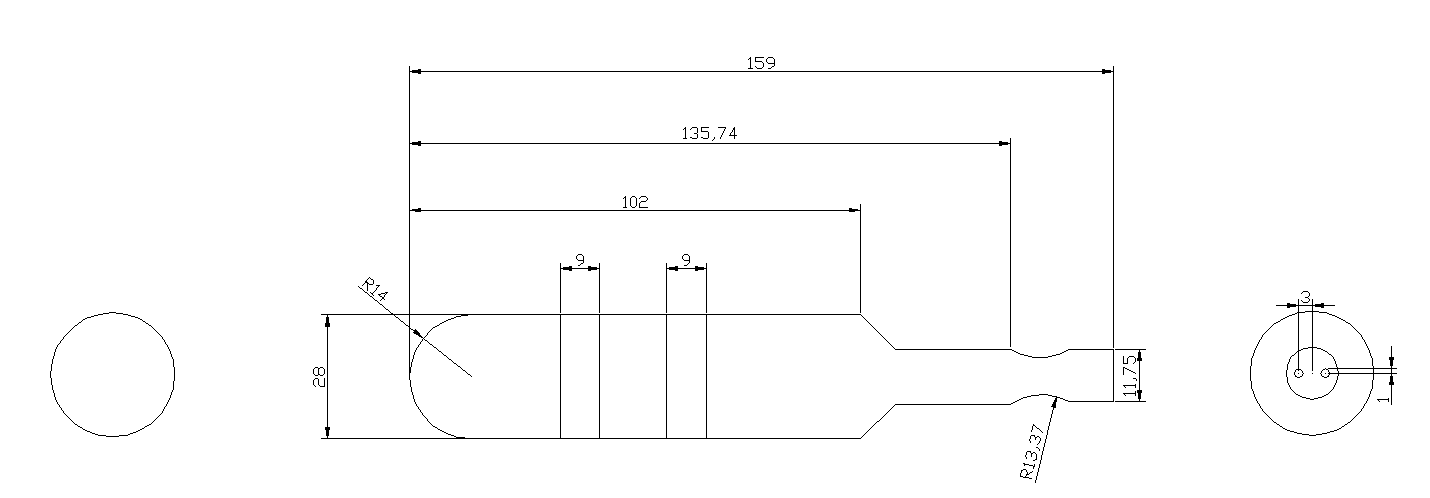

(3) Model: FUJI-03
     Material: SUS & ABS
     Diameter: Dia.28mm x 159mm (Length)

PROBEFUJI03

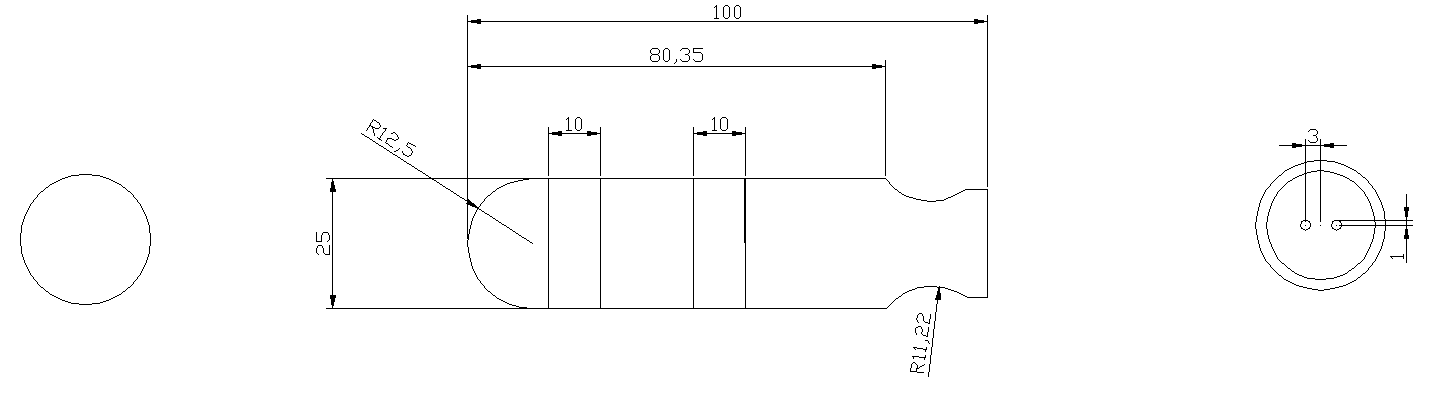

(4) Model: FUJI-04
     Material: SUS & ABS
     Diameter: Dia.25mm x 100mm (Length)

PROBEFUJI04

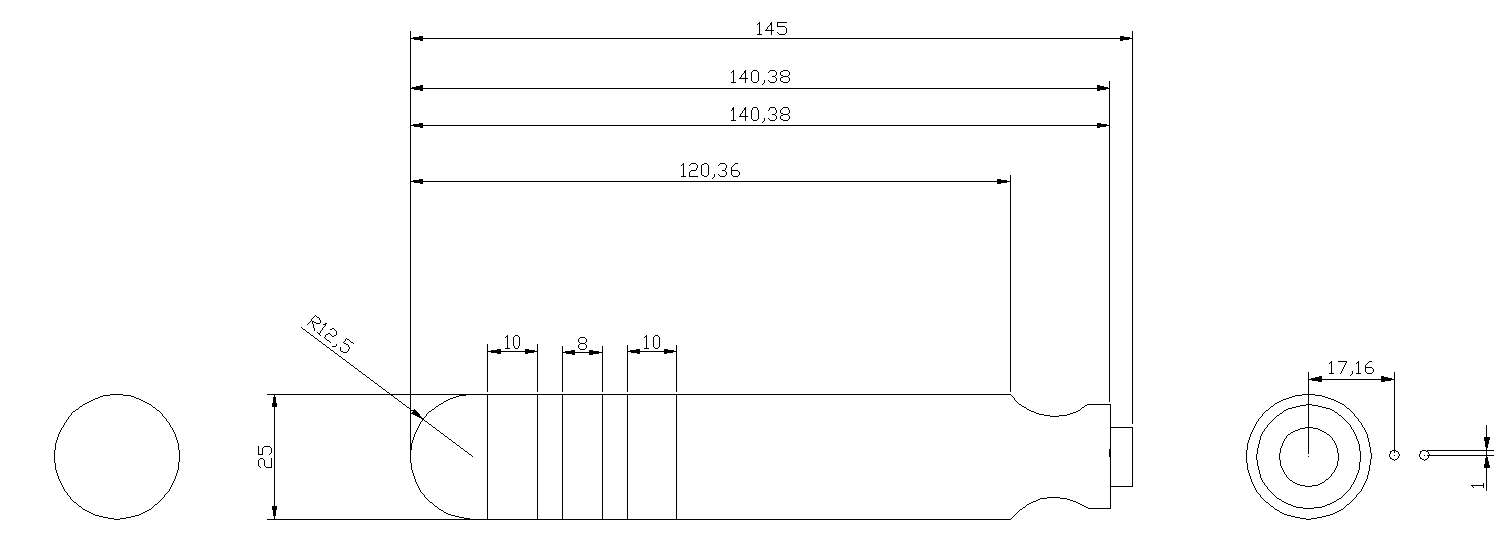

(5) Model: FUJI-05
     Material: SUS & ABS
     Diameter: Dia.25mm x 145mm (Length)

PROBEFUJI05

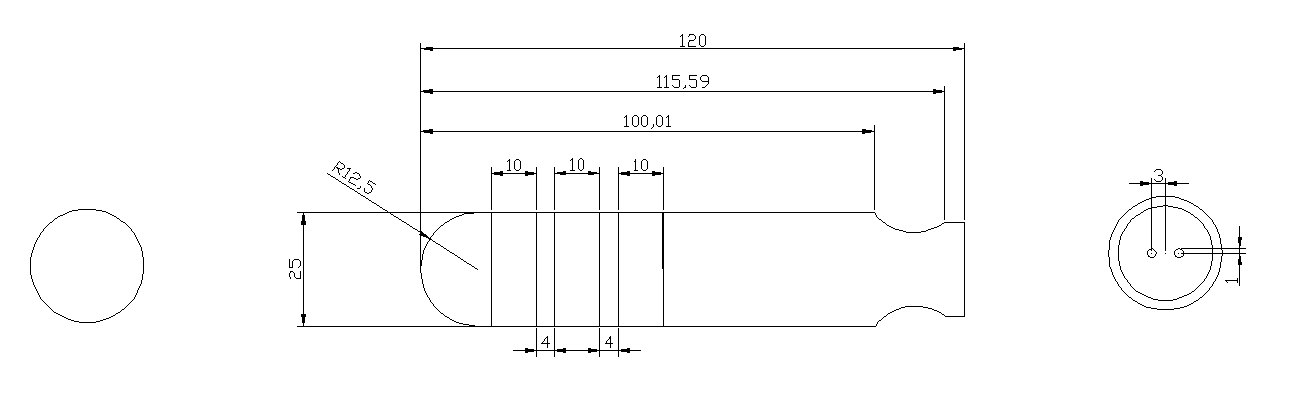

(6) Model: FUJI-06
     Material: SUS & ABS
     Diameter: Dia.25mm x 120mm (Length)

PROBEFUJI06

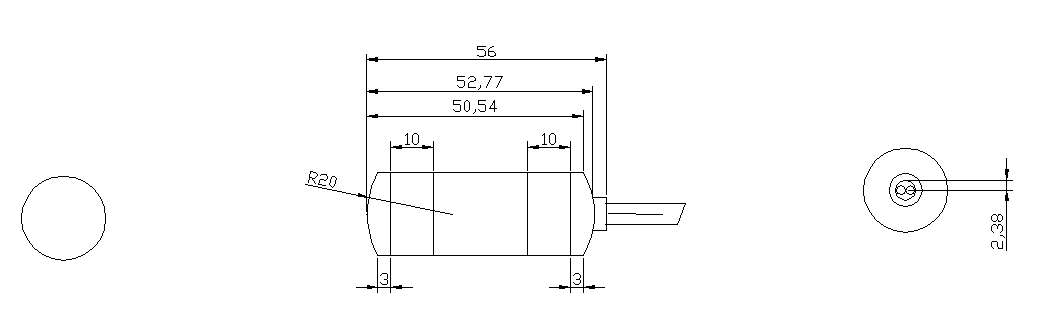

(7) Model: FUJI-07
     Material: SUS & ABS
     Diameter: Dia.20mm x 56mm (Length)

PROBEFUJI07

 (B) Rectal Probe Electrodes

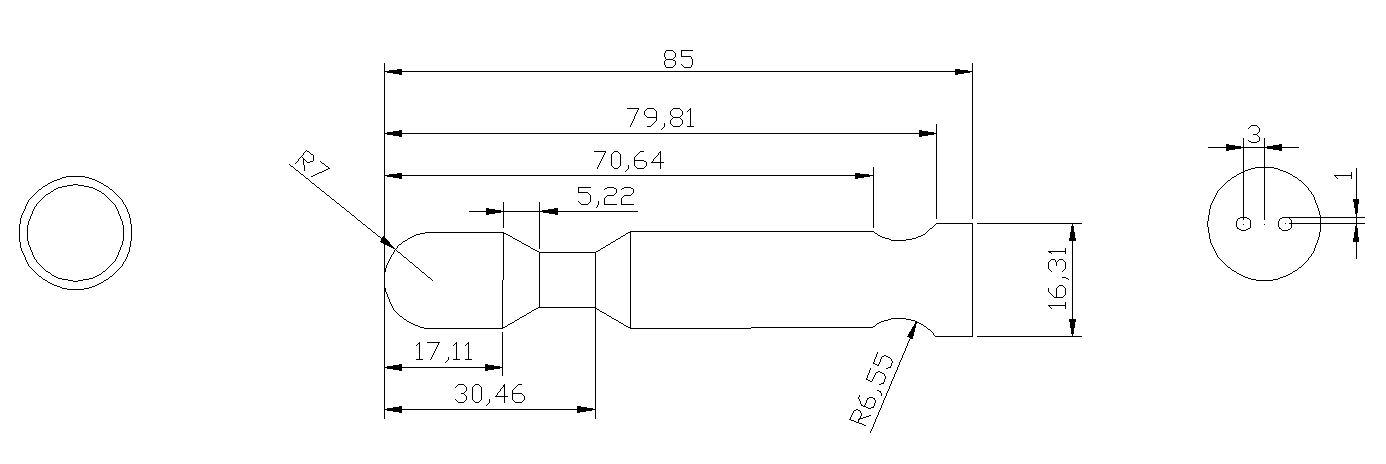

(8) Model: FUJI-08
     Material: SUS & ABS
     Diameter: Dia.14mm x 85mm (Length)

PROBEFUJI08

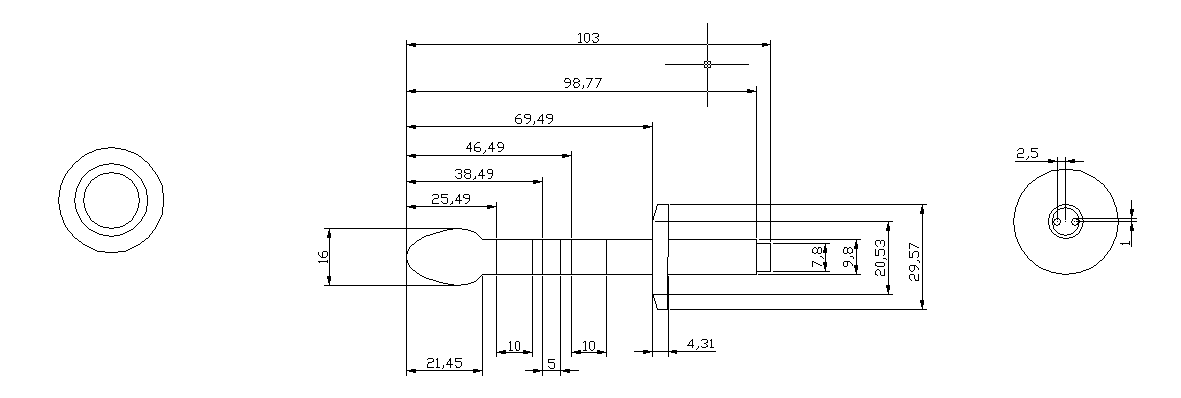

(9) Model: FUJI-09
     Material: SUS & ABS
     Diameter: Dia.16mm x 103mm (Length)

PROBEFUJI09

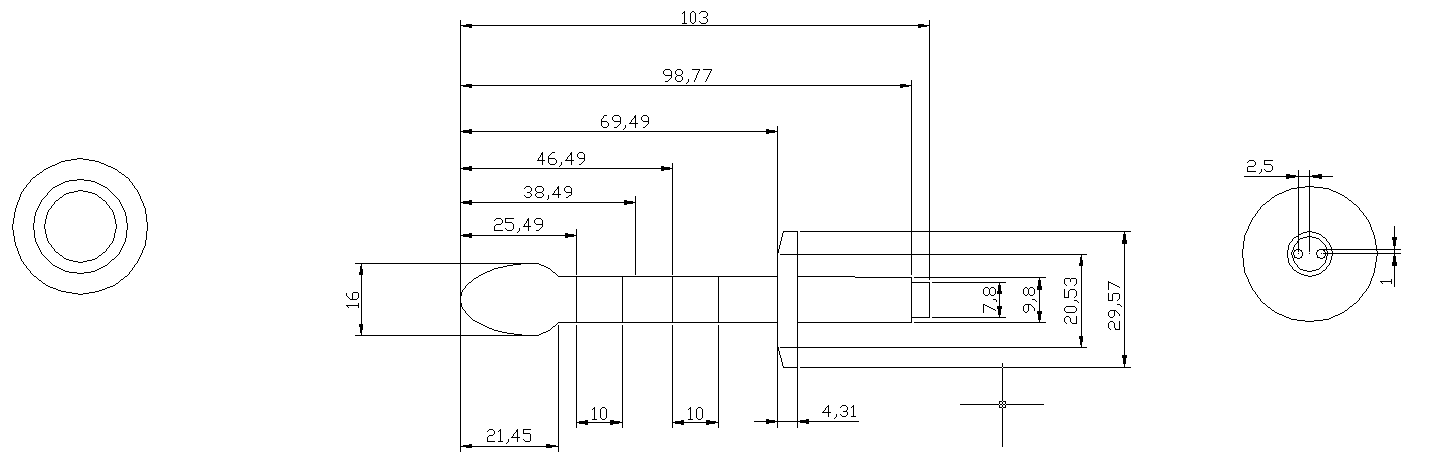

(10) Model: FUJI-10
     Material: SUS & ABS
     Diameter: Dia.16mm x 103mm (Length)

PROBEFUJI10

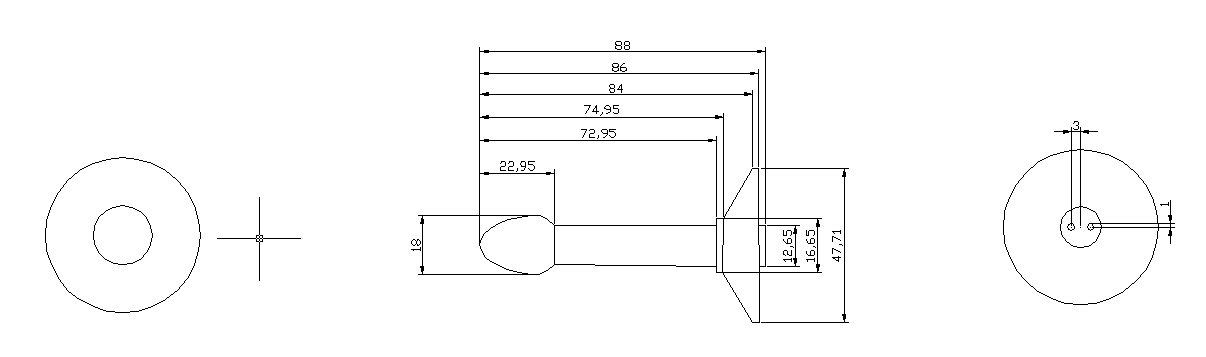

(11) Model: FUJI-11
     Material: SUS & ABS
     Diameter: Dia.18mm x 88mm (Length)

PROBEFUJI11

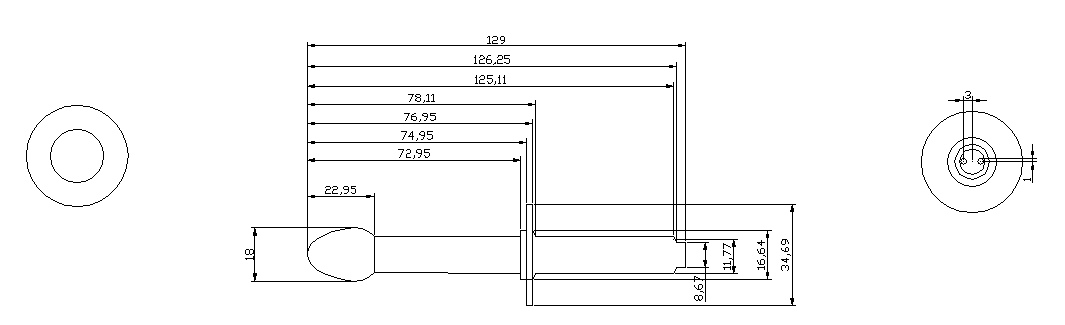

(12) Model: FUJI-12
     Material: SUS & ABS
     Diameter: Dia.18mm x 129mm (Length)

PROBEFUJI12

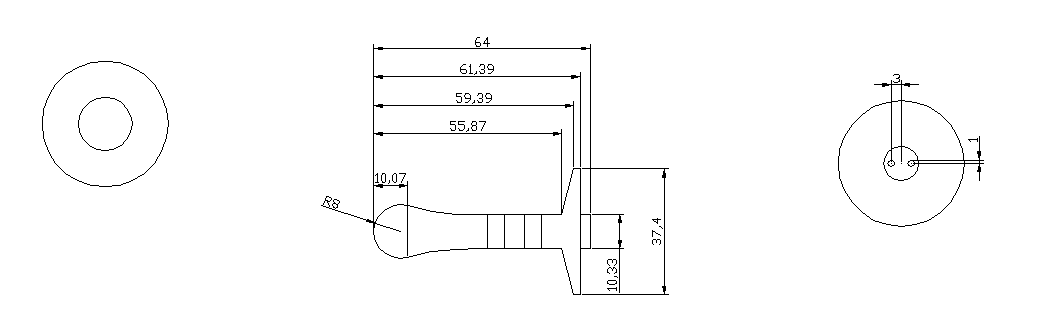

(13) Model: FUJI-13
     Material: SUS & ABS
     Diameter: Dia.16mm x 64mm (Length)

PROBEFUJI13

 (C) Vaginal & Rectal Probe Electrodes

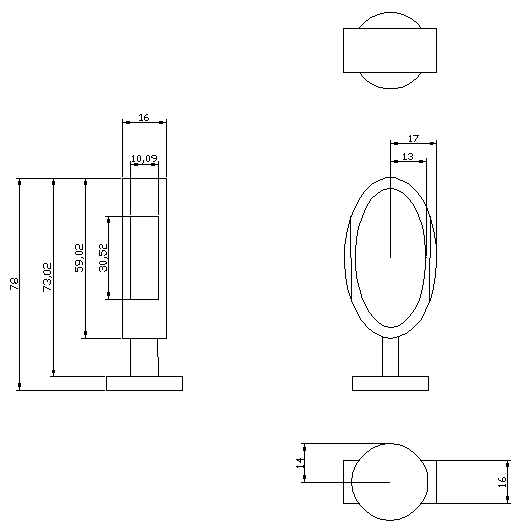

(14) Model: FUJI-14
     Material: SUS & ABS
     Diameter: Dia.34mm x 78mm (Length)

PROBEFUJI14

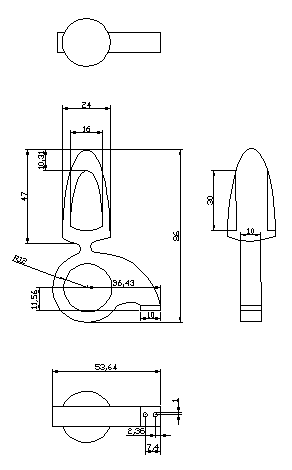

(15) Model: FUJI-15
     Material: SUS & ABS
     Diameter: Dia.16mm x 64mm (Length)

PROBEFUJI15


Specification:

For Vaginal Stimulation Electrodes:
Insert into vagina with electrode surfaces facing ‘East-West’ i.e. towards hips. Insert until body of Incontinence Stimulation Electrode is within the vaginal vault. ‘Ring’ part of the probe should remain external within labia.

 Model  Probe Length
 (inches)		  Probe Diameter
 (inches)		  Electrode Spacing
 (inches)		  Active Surfaces,
 Area (inch2 / band)
 FUJI-01  2.7  0.994  0.55  0.63
 FUJI-02  2.7  0.994  0.55  0.60
 FUJI-03  6.3  1.102  0.59  1.23
 FUJI-04  3.9  0.984  0.71  1.22
 FUJI-05  5.7  0.984  0.20  1.22
 FUJI-06  4.7  0.984  0.16  1.22
 FUJI-07  2.2  0.787  0.87  0.97
 FUJI-14  3.1  1.339  1.14  0.48
 FUJI-15  3.4  0.945  0.63  0.37

For Anal Stimulation Electrodes:
Insert into ANUS whilst ‘bearing down’ as in passing stool. Anal sphincter should ‘lock’ around narrow neck of probe. ‘Ring’ part of probe should remain external to the anus at all times.

 Model  Probe Length
 (inches)		  Probe Diameter
 (inches)		  Electrode Spacing
 (inches)		  Active Surfaces,
 Area (inch2 / band)
 FUJI-08  3.3  0.551  0.31  0.28
 FUJI-09  4.1  0.630  0.12  0.48
 FUJI-10  4.1  0.630  0.43  0.48
 FUJI-11  3.5  0.709  0.12  1.31
 FUJI-12  5.1  0.709  0.12  1.31
 FUJI-13  2.5  0.315  0.24  0.25
 FUJI-14  3.1  1.339  1.14  0.48
 FUJI-15  3.4  0.945  0.63  0.37



Approvals :
        Safety IEC60601-1:2005/GZME130700043001 AA00000
        EMC EN60601-1-2:2007/GZME130700305001
        CE Certificate: HK03/02005
        FDA 510K/K161055
